Vmpet12mic+85mic Pe / 8mic Vmpet+6mic Pe Metalized Film For Construction And Under Floor Construction
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | BM |
| Certification: | ISO |
| Model Number: | BM02 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3tons |
|---|---|
| Price: | 1.1-2.2usd/kg |
| Packaging Details: | 1.bubble film, to protect from collision during transportation 2.specified label, factory label or customized label without factory information 3.different types of packing ways according to roll size or customer's request 4.Standup pallet, Suspenderd pall |
| Delivery Time: | 7-10days |
| Payment Terms: | T/T |
| Supply Ability: | 600tons/monthly |
|
Detail Information |
|||
| Material: | Vmpet+pe | Hardness: | Hard |
|---|---|---|---|
| Thickness: | Customized ，10mic+100mic | Roll Length: | 3000m, 4000m，5000m Etc |
| Application: | Applications: Orchard, Packaging, Building, Printing, Agriculture, Etc. | Width: | 900mm, 1050mm, 1250mm, Etc |
| Wrinkle: | Slightly Inconsistent Wrinkle Is Allowed | Hs: | 3920109090 |
| Highlight: | Construction Metalized Film,85mic Metalized Film,6mic Metalized Film |
||
Product Description
vmpet12mic+85mic pe / 8mic vmpet+6mic pe metalized film for construction and under floor construction
Metalized film widely used for flexible packing, such as metalized BOPP film,PET film,PE film ,CPP film ,etc.
Our Lamination
We make laminated materials by both PE Extrusion Lamination and Adhesive Lamination. So we can make different products with different skills based on customers' requirements.
PE Coated Aluminum Metallized PET Film/BOPP/ Aluminum Foil for Building insulation materials
Structure
- Metallized films
- Clear or Metallized films+PE
- Aluminum foil+PE
- Aluminum foil+PET+PE
- PET+ Aluminum foil+PE
- Customized
- Aluminum foil: 6.5mic,7mic,9mic,10mic,12mic etc.
- Metallized PET film:8mic,10mic,12mic etc.
- LDPE coating:4-30mic
Specification
Metallized PET film + PE
| Type of material | Multi layered coated film | ||
| Short name | Metallized PET + PE Film | ||
| Metallization | Inside | ||
| Thickness | The nominal thickness is determined by the total thickness of the materials: (6-12 mic) Metallized PET film + (6-25 mic) PE. The total thickness of the material: ≤ 35 mic |
||
| Finalproduct | Roll | ||
| Reel | Heat-sealing layer (PE) inside | ||
| Materialwidth | 400 - 2200 mm | ||
| NET weight | (Min) | 55 kg | |
| (Max) | 70 kg | ||
| WidthTolerance | -2 mm / +2mm | ||
| Lateral Edges Alignment | -2 mm / +2mm | ||
| Thickness Tolerance | 6% | ||
| Splice | unit/roll | ≤ 1 | |
| type | Metallized PET / BOPET / Transparent OPP tape Scotch width ≥ 40 mm |
||
| Splicemarking | not necessary | ||
| ID | ID material | paper | |
| Internal diameter | 76 mm (3 inches) | ||
| ID material thickness | 12 ÷ 15 mm | ||
| ID width | Material width (0+5) mm | ||
Application
Our main products include
Packaging Details
1.bubble film, to protect from collision during transportation
2.specified label, factory label or customized label without factory information
3.different types of packing ways according to roll size or customer's request
4.Standup pallet, Suspenderd pallet

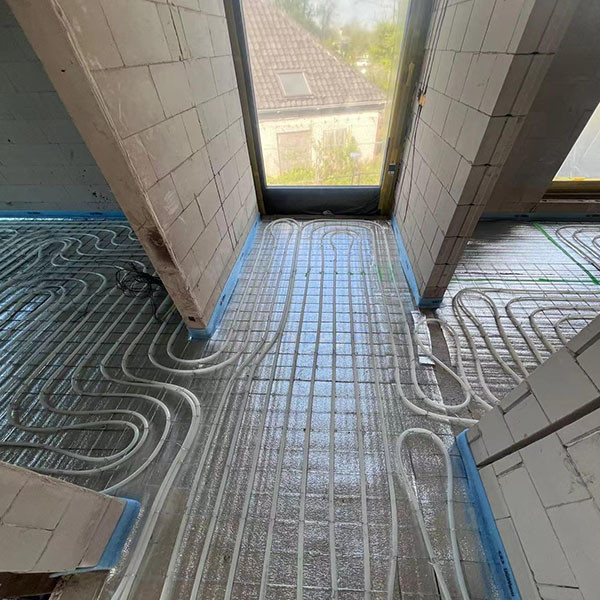

Usage
